Our Machinery
Wide Range Of CNC Machines
Highlights from our fleet of over 100 machines across two plants in Sungai Petani.
Key Machine Specifications
Key figures for the machines behind our tightest-tolerance work.
| Machine | Key specifications |
|---|---|

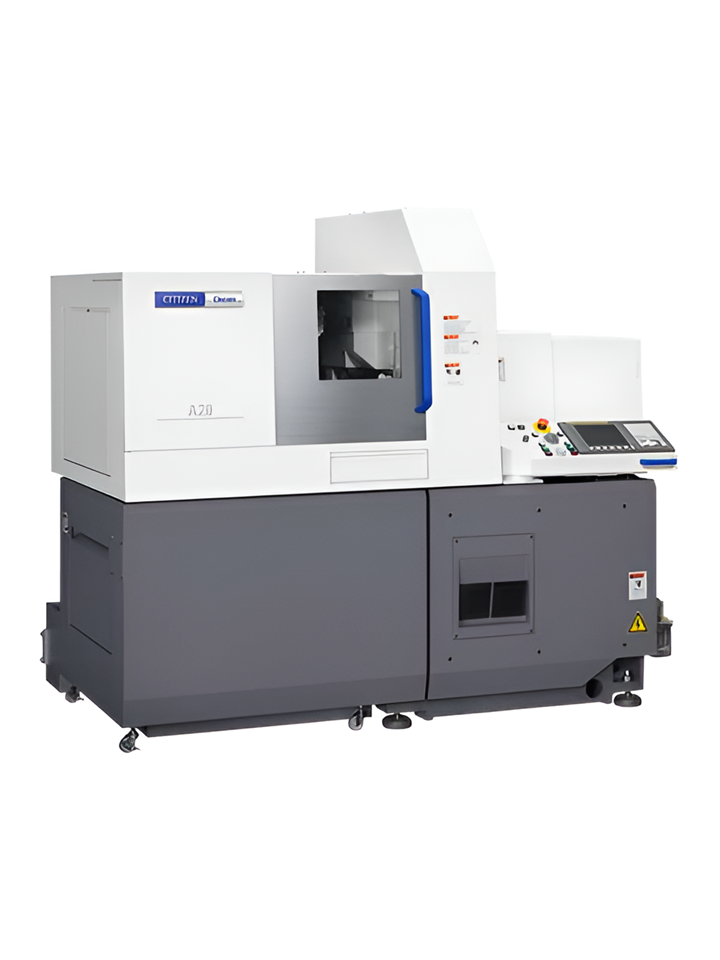

| Citizen Cincom A320 VII 7-axis sliding-headstock automatic CNC lathe | 21 tools · machining diameter up to 25 mm · accuracy within 0.005 mm |

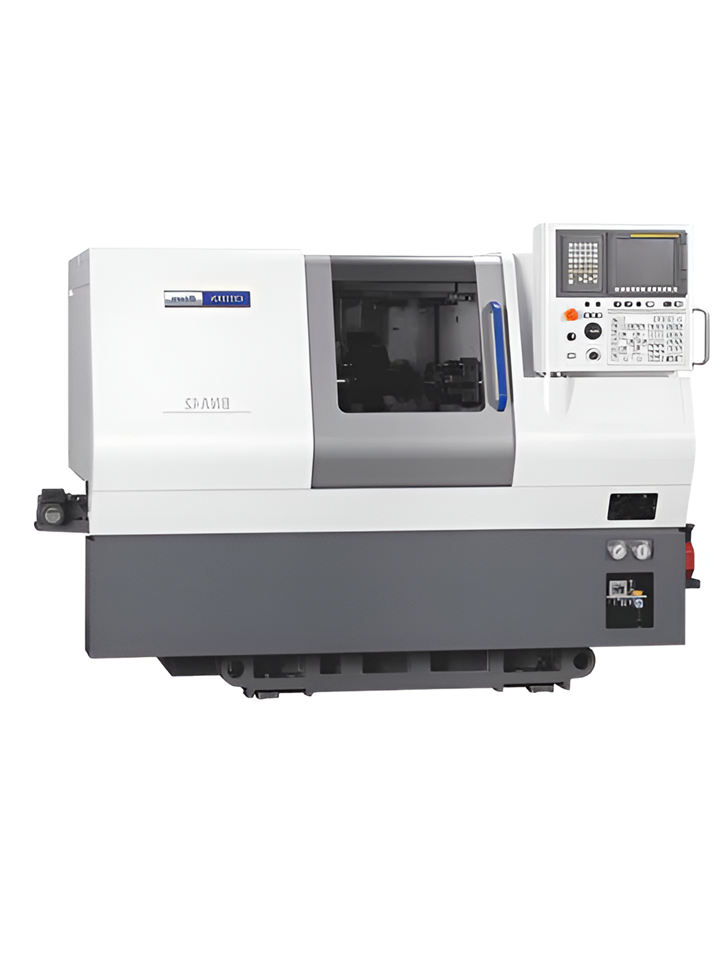

| Citizen Miyano BNA42-DHY 7-axis fixed-headstock CNC automatic lathe | Twin spindle and twin turret (8 + 6 stations) · machining diameter up to 42 mm · accuracy within 0.005 mm |

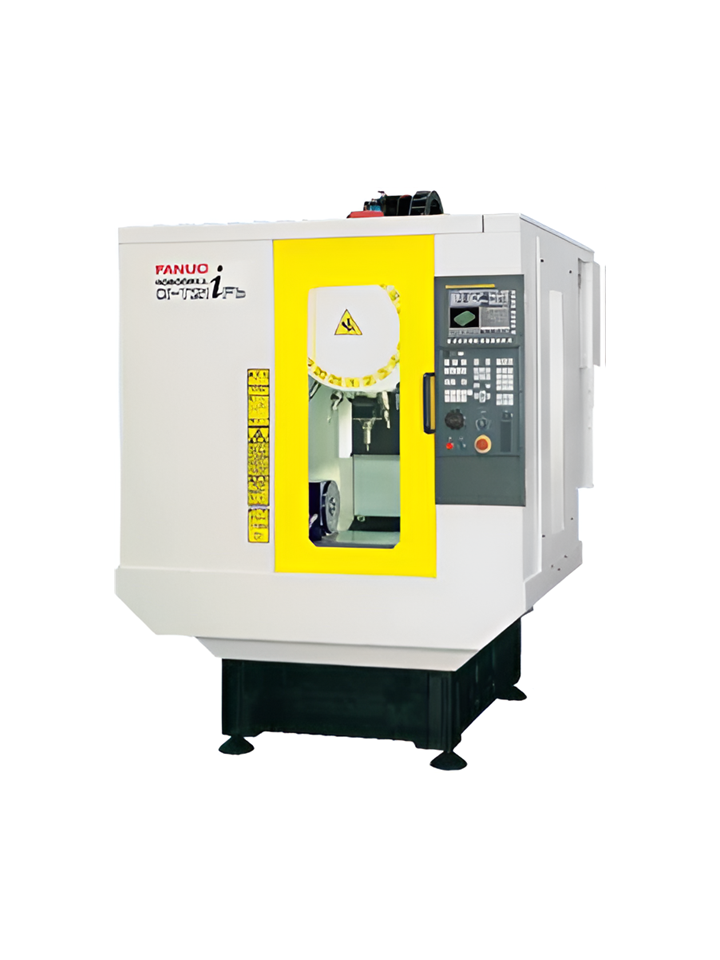

| FANUC Robodrill compact machining centres 3-, 4- and 5-axis | High-torque and high-column models · table sizes 850 × 420 mm, 650 × 400 mm and 550 × 320 mm |

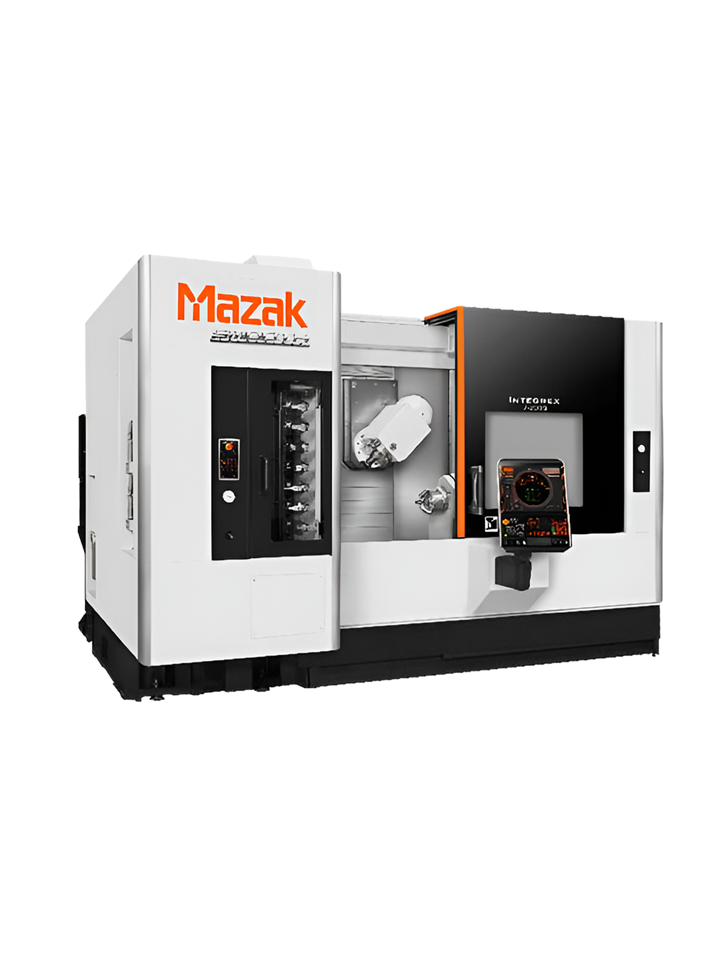

| Mazak Integrex J200 CNC multi-tasking machine | B-axis milling spindle indexing from −30° to 190° · high-speed, high-torque milling spindle · large true Y-axis · large tool magazine · programmable NC tailstock · Mazatrol SmoothG CNC |

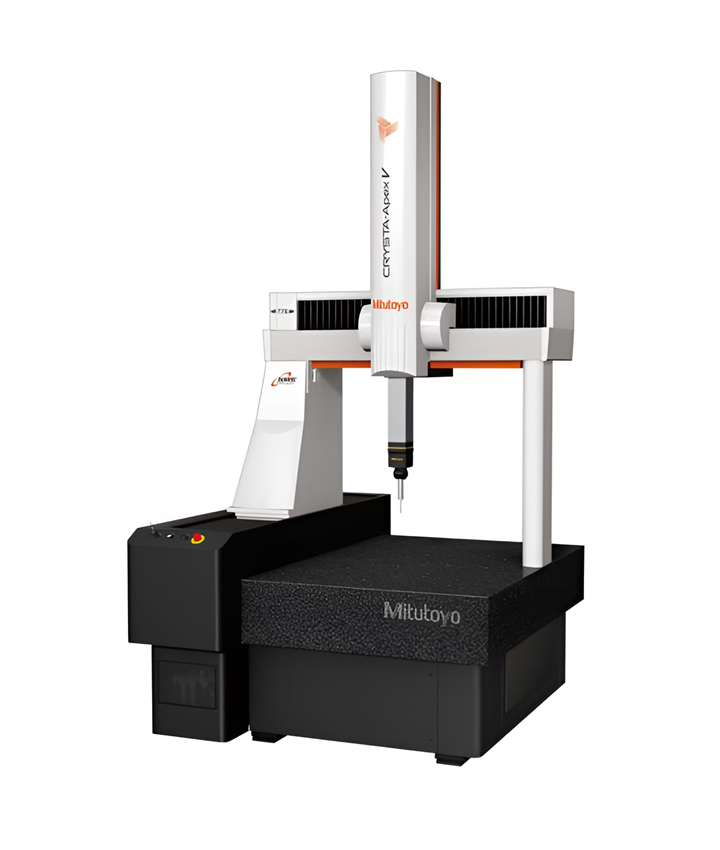

| Mitutoyo Crysta-Apex V776 CNC coordinate measuring machine | Measuring range 700 × 700 × 600 mm · length measurement error under 2 µm over 100 mm |

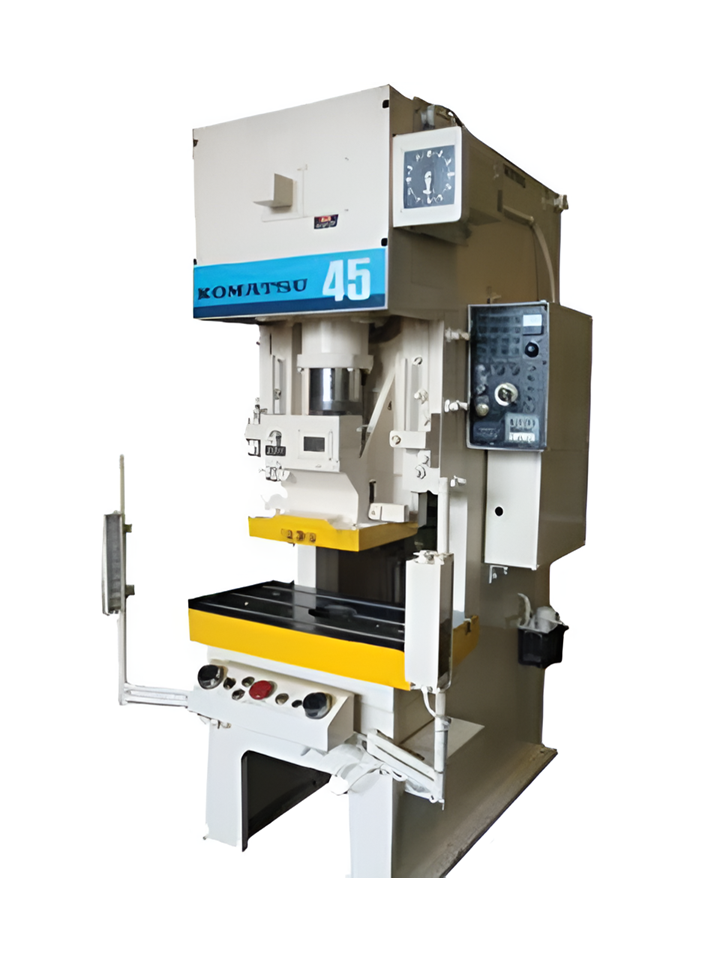

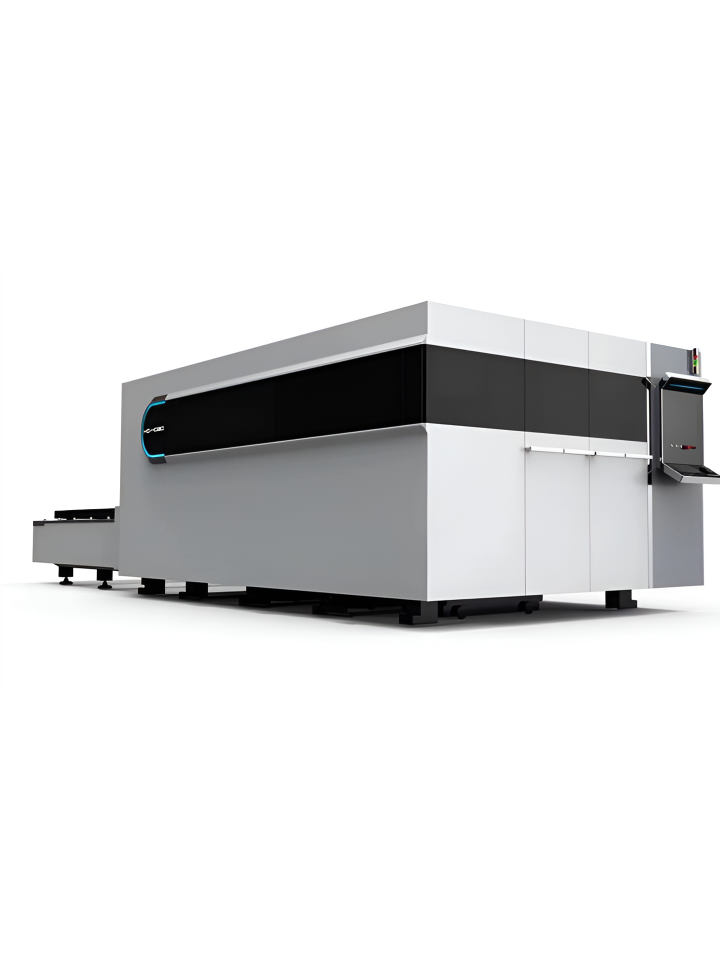

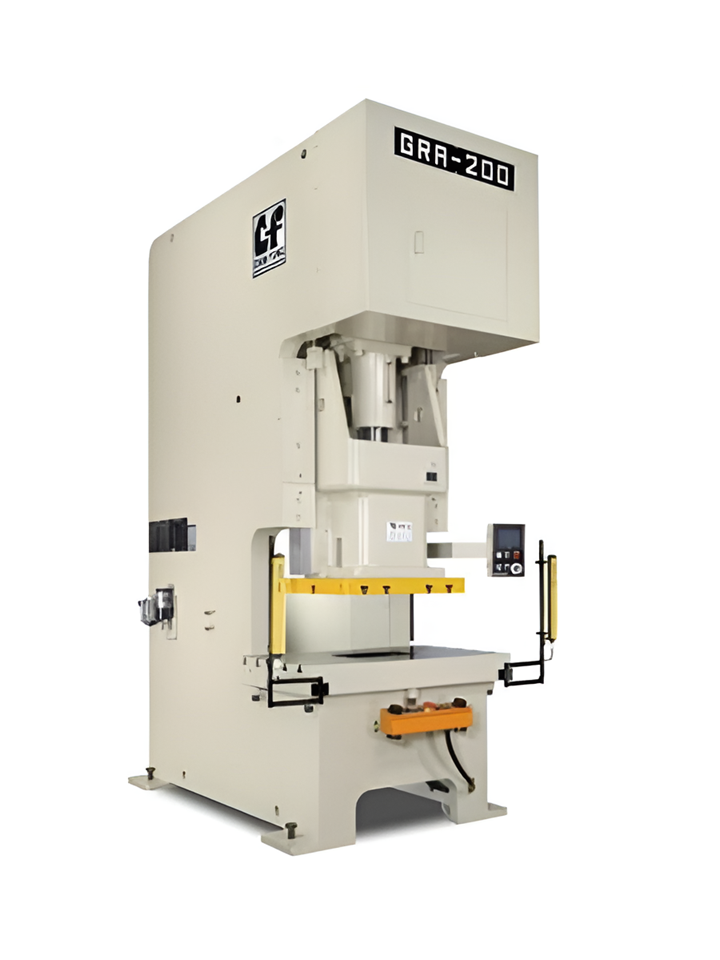

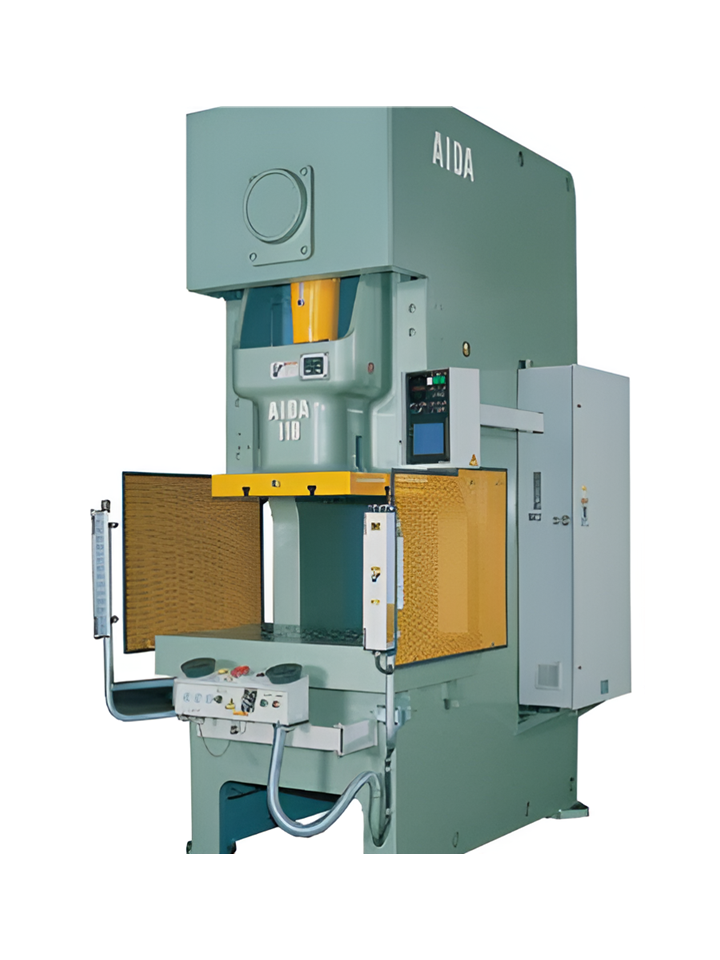

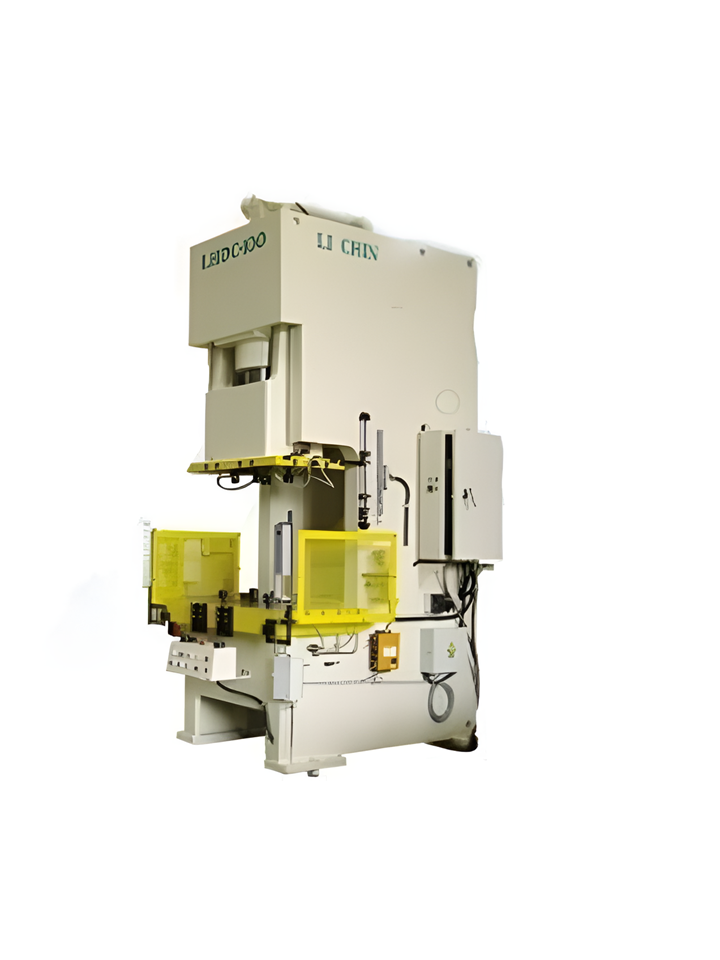

Sheet Metal Fabrication

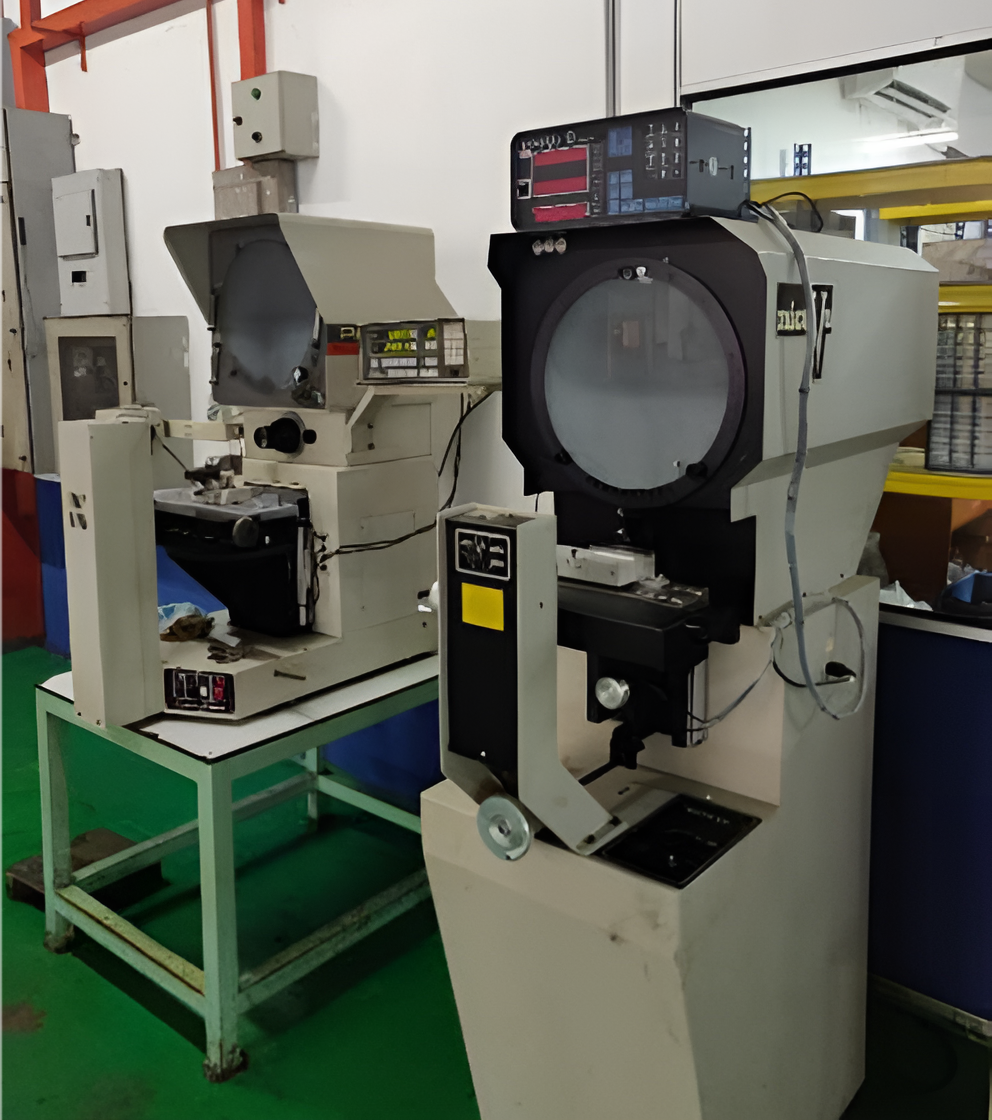

Quality Assurance Machineries
Inspection Instruments & Custom Gauges
Every part is checked with calibrated instruments and, where needed, gauges made for that part.
Measuring instruments
- Digital micrometers and digital callipers
- Height gauges and feeler gauges
- Surface roughness tester
- Pin, block and ring gauges
- Thread plug and screw thread gauges
Electronic inspection
- Digital microscope
- Digital multimeter
- Oscilloscope
Custom gauges
We design and make dedicated inspection gauges in-house for customer parts, so critical features are checked quickly and consistently on the production floor.
Automation Robotics and Machineries
- Test machines
- Production machines

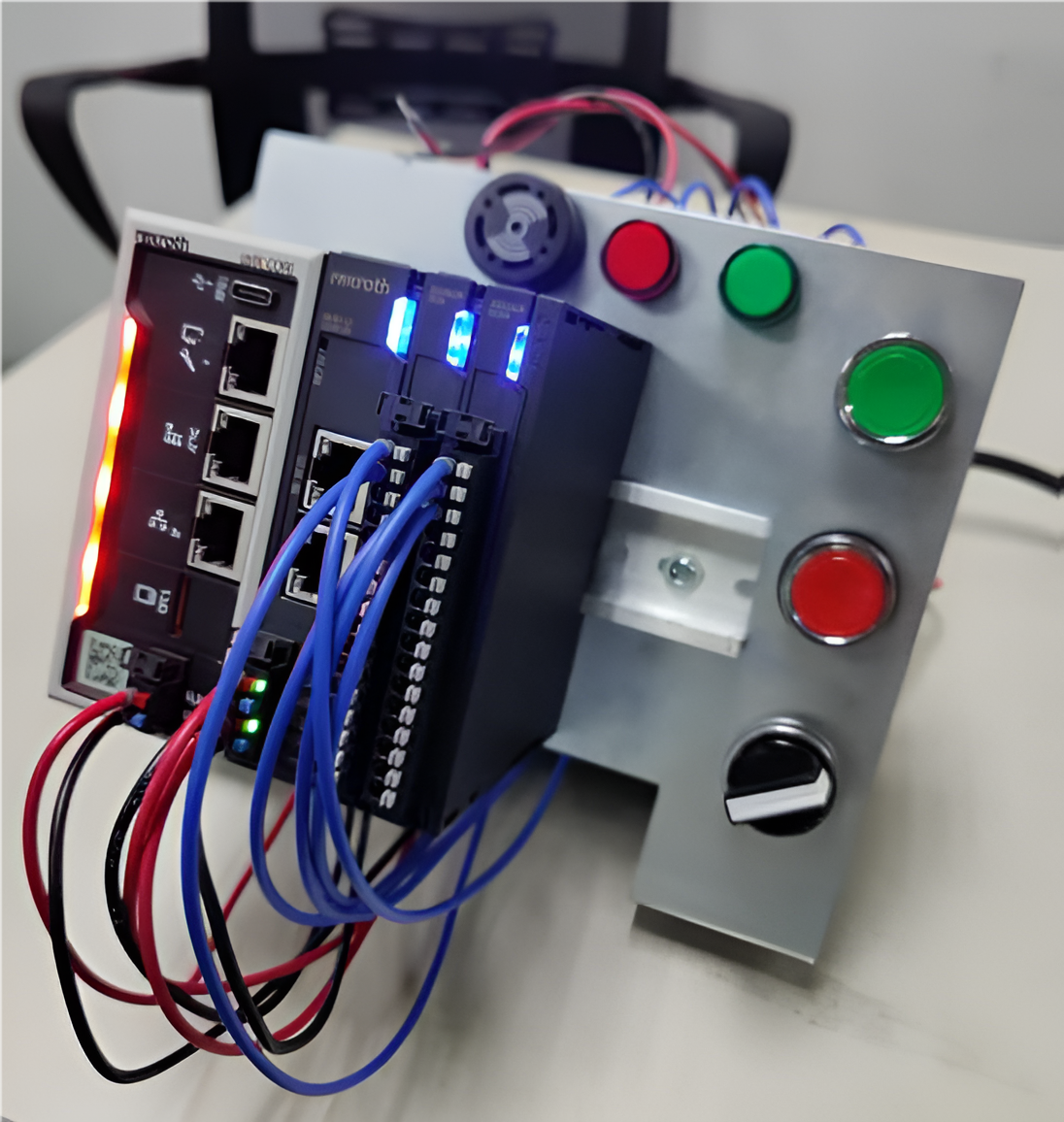

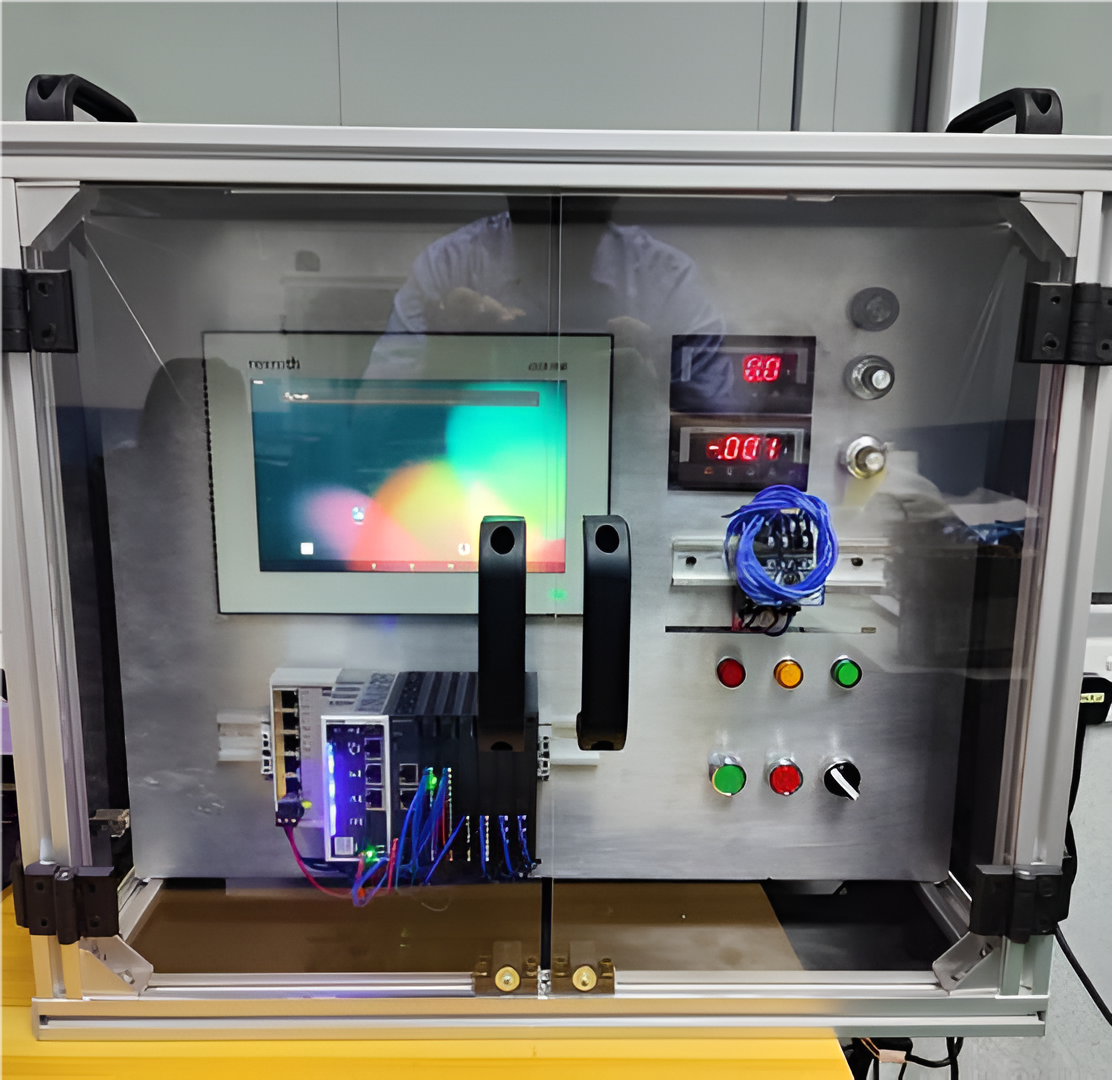

- PLC system design
- Pneumatic and hydraulic systems
- Electrical and electronics
- Pick-and-place systems
- Vision systems
Mechatronics Design, Fabrication & Assembly
We design, build and commission machines, robotic cells and test equipment for our own lines and for customers.
Robotic and control systems
- PLC control system design and development
- Pick-and-place systems for CNC machining
- CNC machining pallet automated storage and retrieval system with pick-and-place

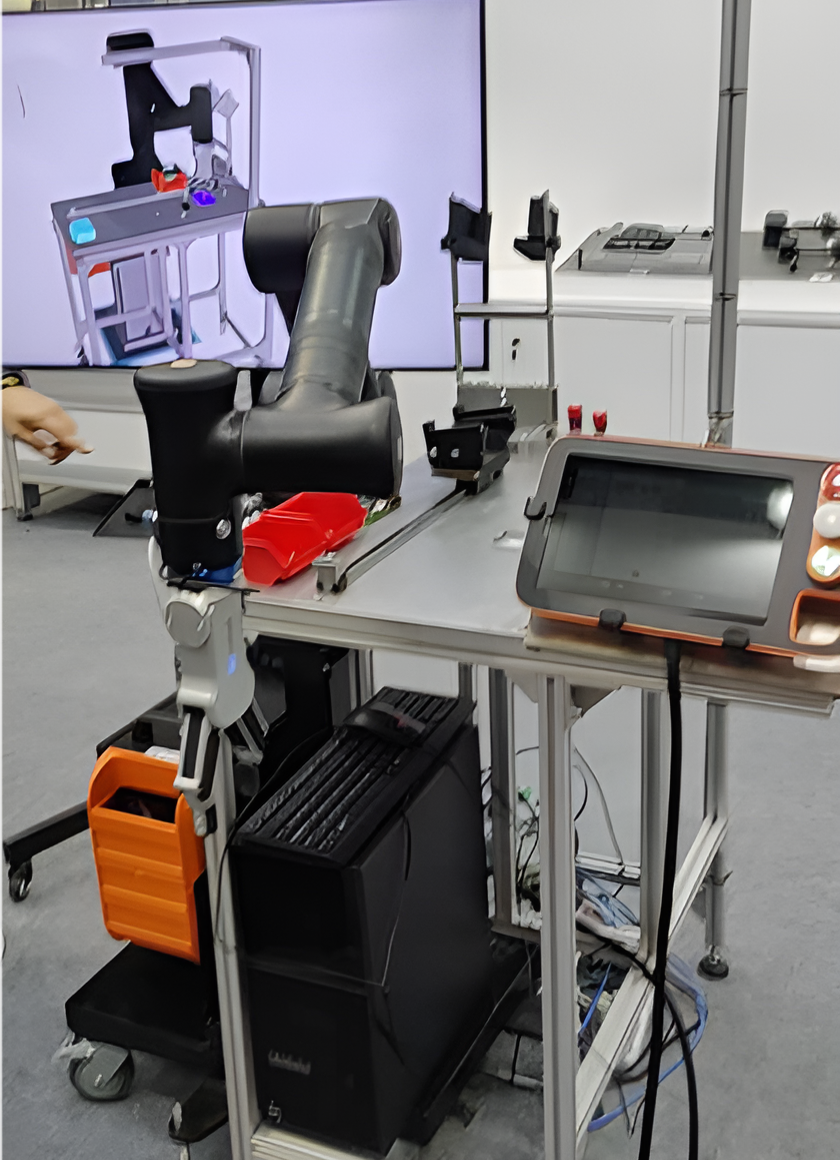

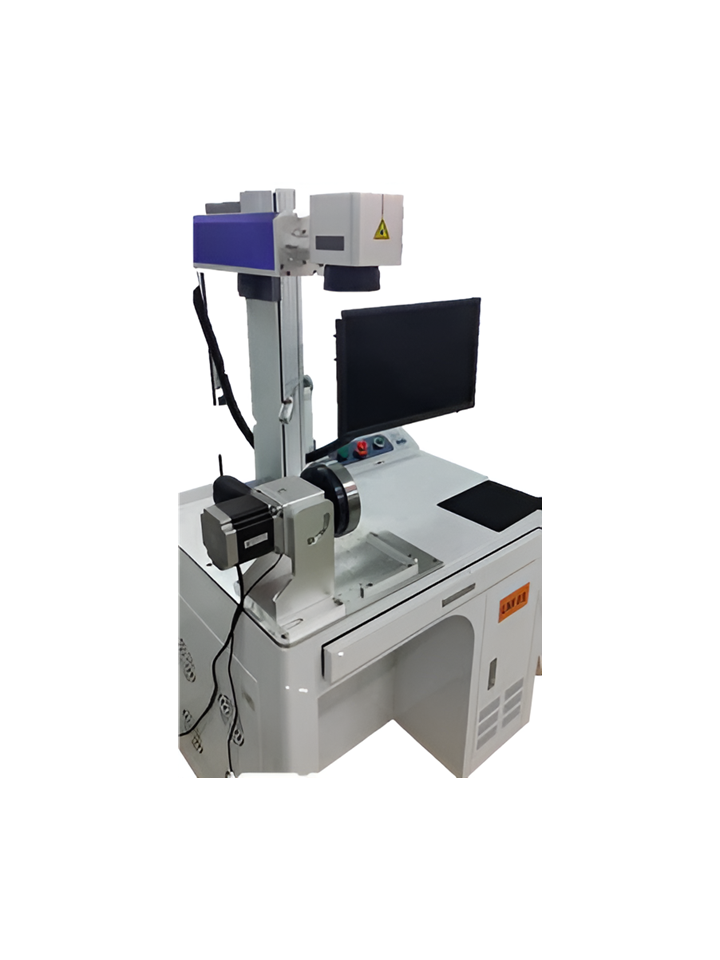

- 7-axis cobot pick-and-place for laser marking
- 7-axis cobot workstation for automated PCB enclosure assembly
Test and inspection machines

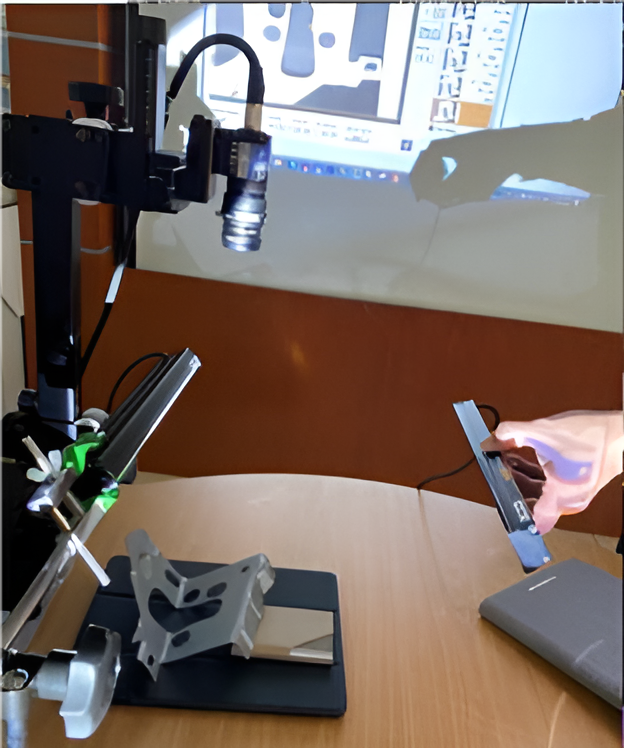

- Vision inspection and functional test solutions
- Semi-automatic bearing assembly and test machine (turntable type)
- Brake-spring cycle test machine
- Hole-punch quality inspection machine
- High-speed rotary table dimension inspection machine
Jigs, fixtures and special machines
- Jigs and fixtures for semiconductor equipment
- Jigs and fixtures for machinery and equipment (M&E)
- Rubber deflashing and separating machine
- Copper wire straightening machine with length measurement
- Cycle test machines
Digital Systems & Smart Manufacturing
Connected systems that give us real-time visibility of production and quality.
ERP and MES
- Enterprise Resource Planning (ERP) brings business operations and data into one central system, so every department works from the same information
- Manufacturing Execution System (MES) gives real-time data on machine performance, downtime and quality
- CAD/CAM software for design and programming
In-house digital tools
- Digital machine set-up buy-off
- In-process quality (IPQC) and inspection checks
- Cycle-time input
- Work instruction generator and registration
- Finished-goods and raw-material stores
- Gauge master list and verification

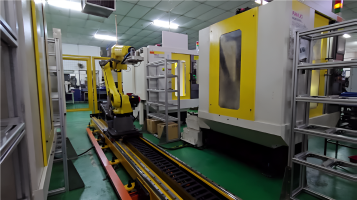

Robotics with AI vision
- FANUC iRVision for autonomous part picking and loading
- Detects part orientation and position, with machine-to-machine communication
- In-process part rotation for visual defect inspection
- Pick-and-place automation for CNC turning and laser marking (in progress)

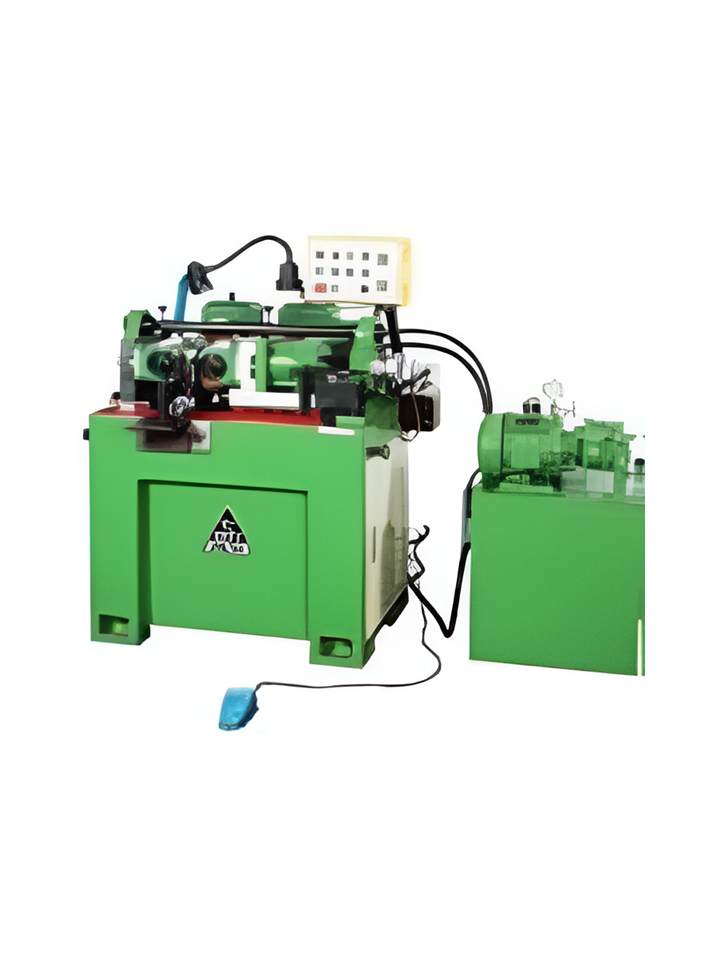

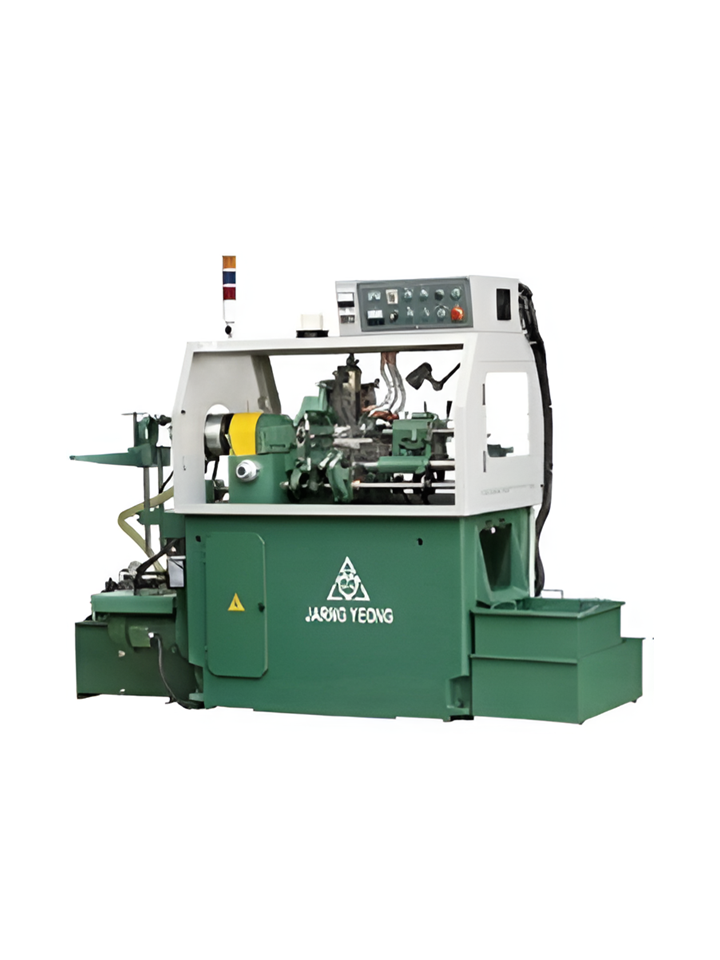

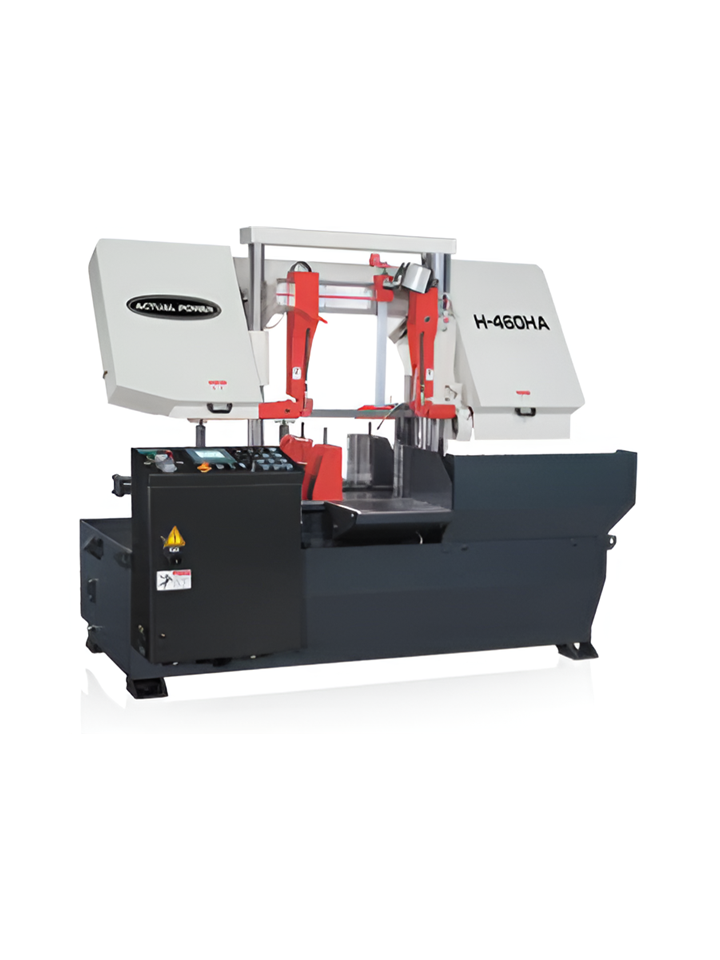

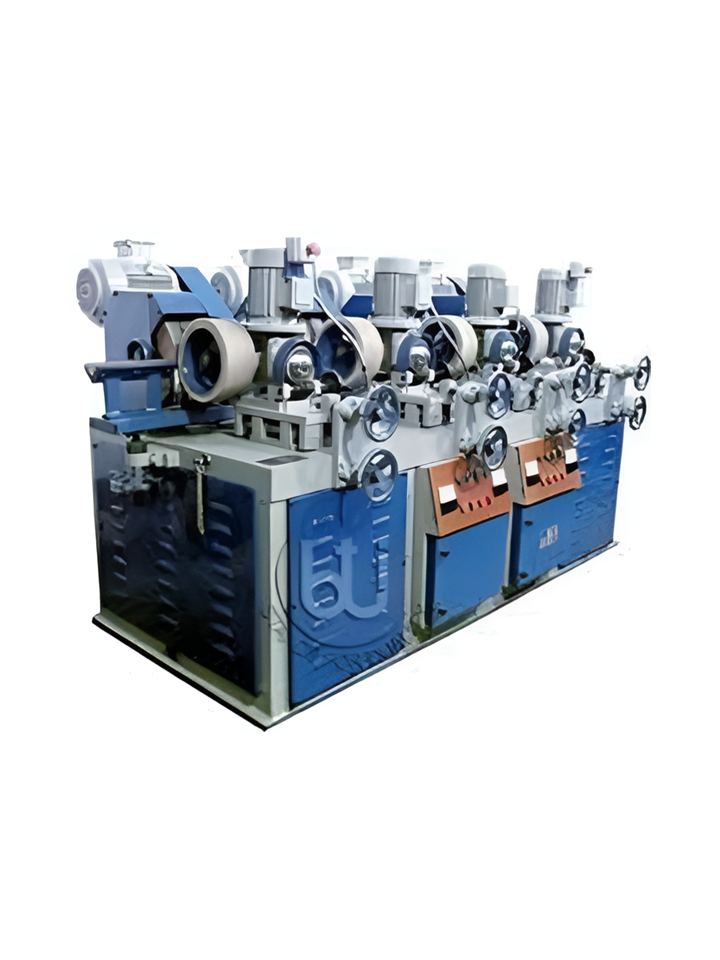

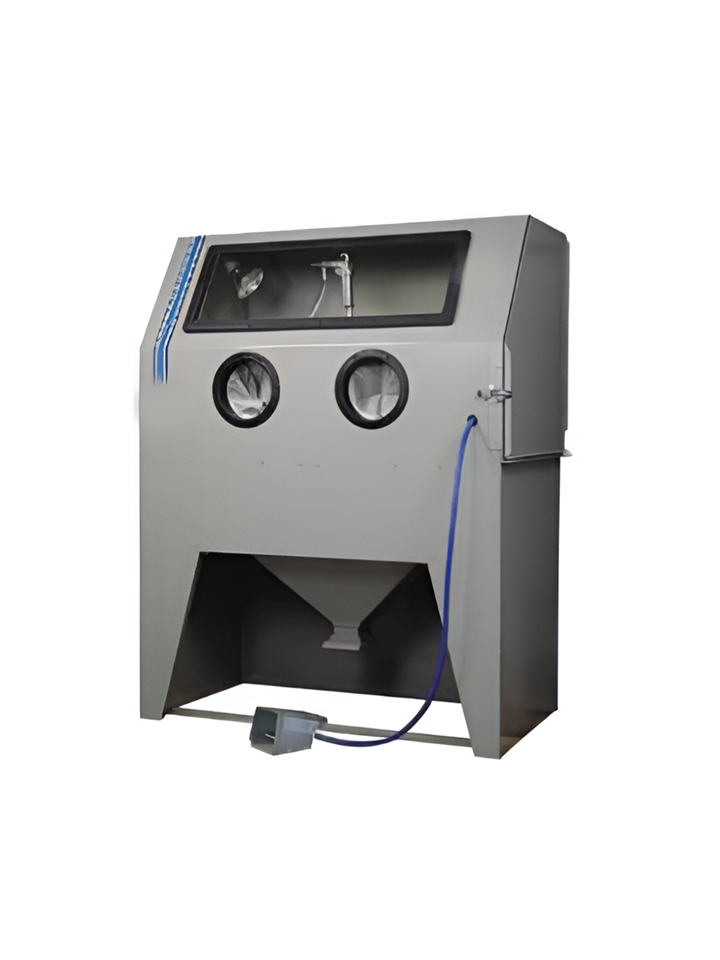

Secondary Process Machines

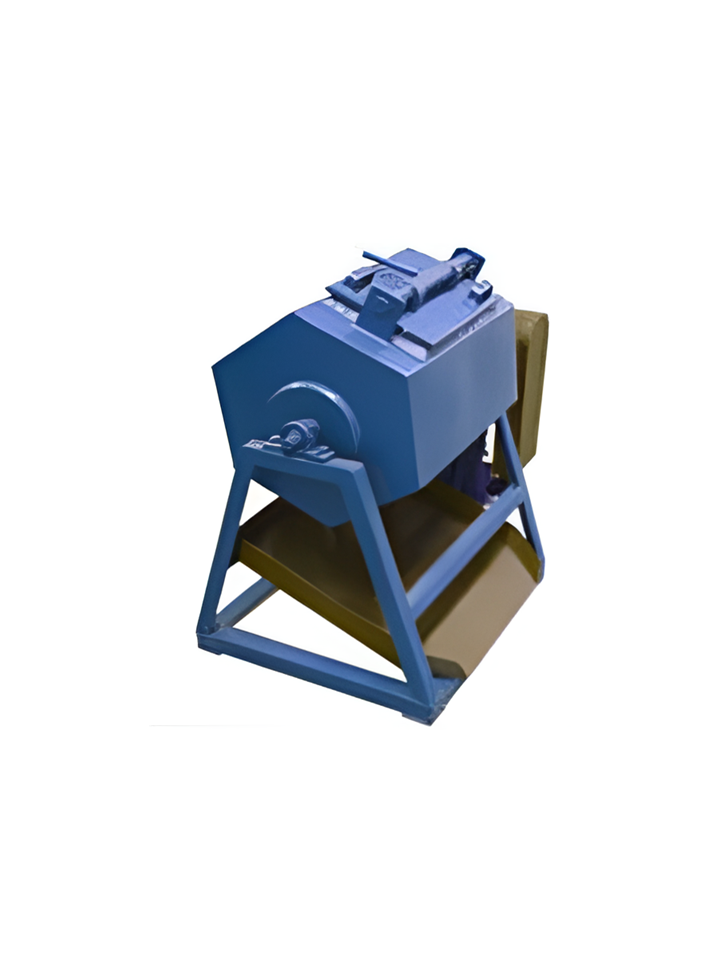

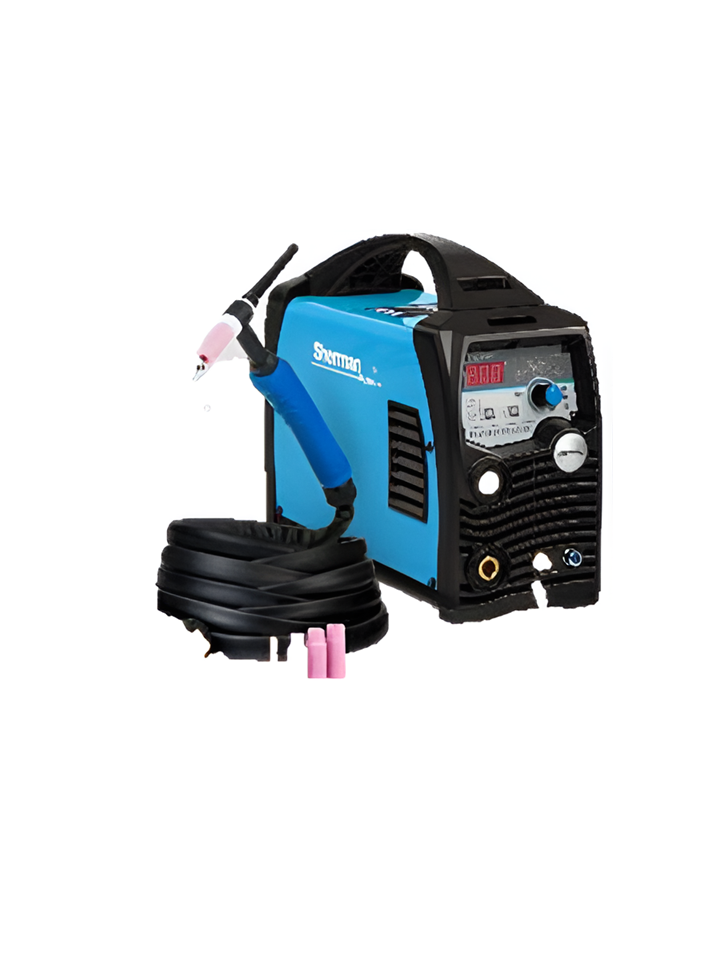

Also in our workshop: ultrasonic polishing machine · magnetic polishing machine · SMD and hot-air soldering station
Project implementation process
Design and Planning
At Famax, our design and planning process focuses on innovation, efficiency, and precision. We work closely with clients to develop customized solutions, utilizing advanced software and industry expertise to create optimal designs that meet both functional and aesthetic requirements.
Component Sourcing
We ensure high-quality component sourcing by partnering with trusted suppliers and adhering to strict selection criteria. Our global supply chain allows us to procure the best materials at competitive prices while maintaining consistency, reliability, and compliance with industry standards.
Testing and Quality
Quality assurance is integral to our process, with rigorous testing and inspection at every stage of production. Using state-of-the-art technology, we verify product performance, durability, and safety to ensure compliance with international quality standards.
Final Assembly
Our final assembly process combines expert craftsmanship with precision engineering to deliver superior products. We follow strict assembly protocols, ensuring seamless integration, functionality, and reliability before final delivery to our clients.
